Cylinder Block
Note: "Early" refers to engines before # 2760
| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Cylinder block & main bearing housing assembly
We may be able to supply used. | 1 | NLA |
| 16 | Sump assembly | 1 | 94066 |
| 17 | Drain plug, early | 1 | 94081 |
| | Drain plug, late | 1 | 93581 |
| 18 | Plug washer, early | 1 | 90409 |
| | Plug washer, late | 1 | 93090 |
| 25 | Sump gasket, early | 1 | Use Hylomar |
| | Sump gasket, late | 1 | Use Hylomar |
| 26 | Dipstick | 1 | 94119 |
| 30 | Engine mount | 2 | 92093 |
| 33 | Mount packer | A/R | 92287 |
| 36 | Spray shield | 1 | 94134 |
| not ill | Lower gasket set, early | A/R | 93587E |
| not ill | Lower gasket set, late | A/R | 93587 |
|

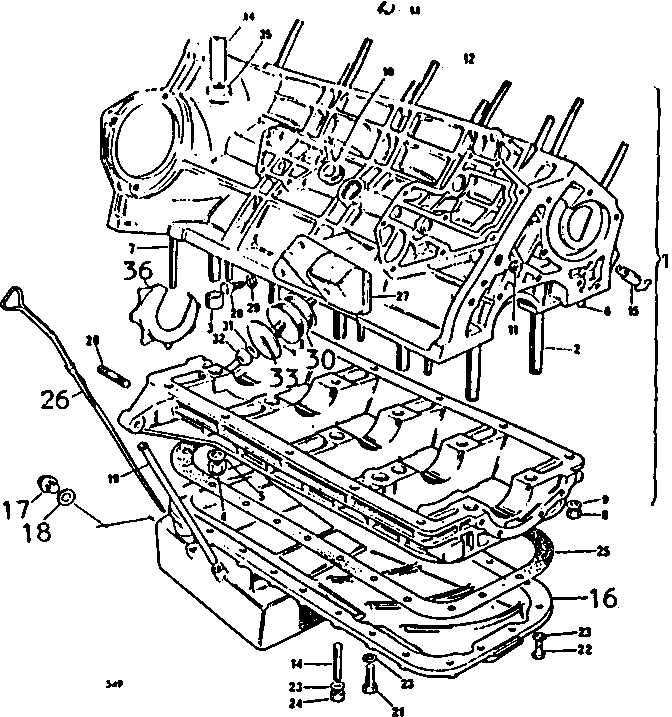

![[]](Images/CylinderBlockPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
|
