| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Wiper motor | 1 | CT3955 |
| 2 | Shaft & gear | 1 | WGB167 |
| 3 | Wiper rack | 1 | CT5645 |
| 9 | Wheelbox | 2 | CT3945 |
| 12 | 10o angle wiper arm | 1 | CT4822 |
| 13 | Straight wiper arm | 1 | CT4821 |
| 14 | Wiper blade | 2 | CT4823 |
|

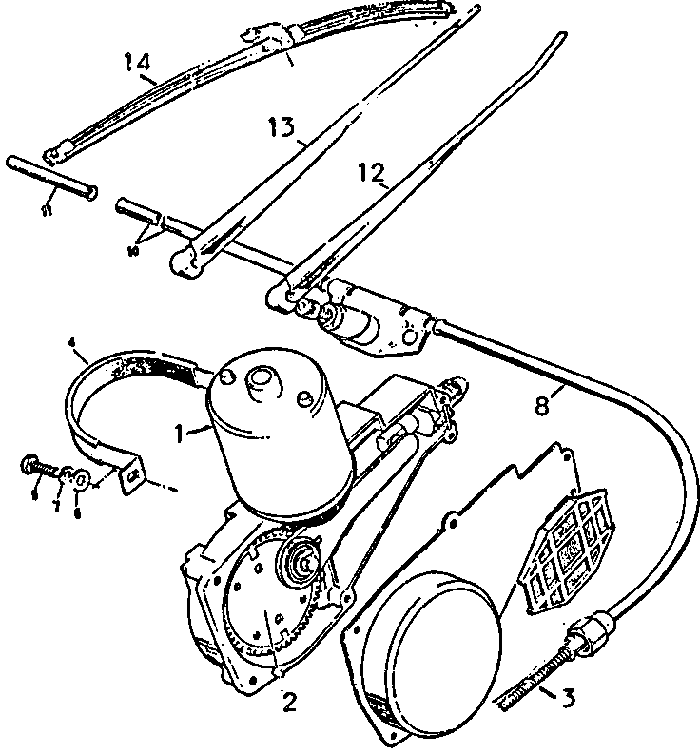

![[]](Images/WindscreenWipersPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
![[]](../products/Images/WindscreenWipersPlate.gif)
