| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Fluid reservoir assembly | 2 | 27218 |
| 4 | Cap and switch | 2 | 27219 |
| 18 | Master cylinder, 7/8 in bore | 1 | CT5367 |
| | Repair kit, 7/8 in cylinder | | CT5367K |
| | Repair kit, tin cylinder | | 52010K |
| | Master cylinder, 23 mm bore | 1 | CT5642 |
| | Repair kit, 23 mm cylinder | | 52180 |
| | Note: When ordering replacement cylinders or kits please give cylinder bore size and casting numbers. | | |
| 25 | Pedal lever bush | 2 | CT832 |
| 31 | Rubber pedal pad | 1 | CT286 |
| 60 | Brake disc, MKIII | 2 | CT4853 |
| | Brake disc, MKII | 2 | 26107 |
| 69 | Hose, to VIN 5866 | 2 | CT4377 |
| | Hose, from VIN 5867 | 2 | CT7076 |
| | Front caliper kit | 1 | CT5456 |
| | Small piston | 4 | CT5474 |
| | Large piston | 2 | CT5473 |
| | Supervac kit | 1 | CT5643 |
| | Check valve kit | 1 | CT5739 |
| | Front pads, no wires | 1 | CT5337 |
| | Hardware kit | 1 | LDP6 |
|

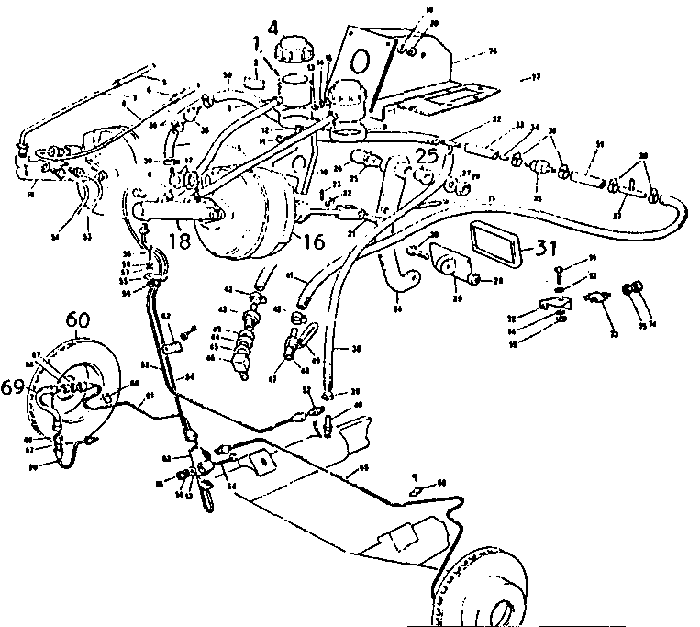

![[]](Images/BrakingSystem-FrontPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
