Rear Brakes - Lockheed

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
4Brake drum293842
6Shoe set194257
LH lever spring194240
7Cylinder wheel assembly294241
not ill With cylinder kit294261
10RH handbrake lever194233
LH handbrake lever194234
11Handbrake lever boot294256
12Upper shoe lever494250
13Lower shoe lever494251
14RH lever spring194239
15Short clevis pin294245
16Long clevis pin294248
17Washer494246
18Circlip494247
19RH Tension spring194235
LH tension spring194236
20RH pull off spring194237
LH pull off spring194238
21Pull off spring294243
23Steady brake spring494253
24Steady pin494254
25Brake shoe steady spring washer494255

[]

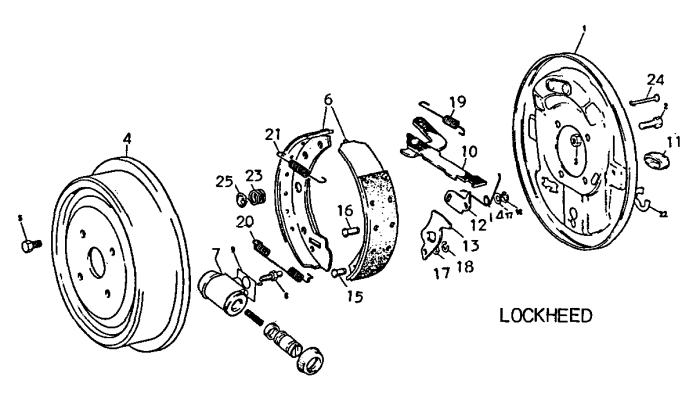

(Select diagram above to view larger size Then Use Browser GO-BACK.)
