Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | 4 speed clutch housing | 1 | 91084 |
2 | 4 speed lever pivot | 1 | 91526 |
| 5 speed lever pivot | 1 | 97353 |
3 | Clutch release lever | 1 | 91688 |
4 | Lever slot gromet | 1 | NLA |
5 | Lever return spring | 1 | 91691 |
not ill | Pilot bearing | 1 | 91823 |
not ill | Pilot bushing | 1 | 91823A |
6 | Throw-out bearing | 1 | 91089 |
8 | Clutch cover | 1 | 91181 |
| Cover, rebuilt | 1 | 91181R |
9 | Clutch disc | 1 | 91182 |
| Disc, rebuilt | 1 | 91182R |
| Clutch kit | | DMS91811K |
10 | Dowel, to flywheel | 3 | 93718 |
13 | Insulator pad | 1 | 91392 |
14 | Pressure pad | 1 | 91393 |
18 | Damper unit engine | 1 | NLA |
22 | LH clutch housing cover plate | 1 | 92139 |
23 | RH clutch housing cover plate | 1 | 92140 |
33 | Clutch cable gaiter | 1 | 91391 |
not ill | Alignment tool | 1 | 33-42 |
not ill | Clutch cable | 1 | DMS90219 |
not ill | Pilot bushing, for repair purposes only | | 91823A |
|

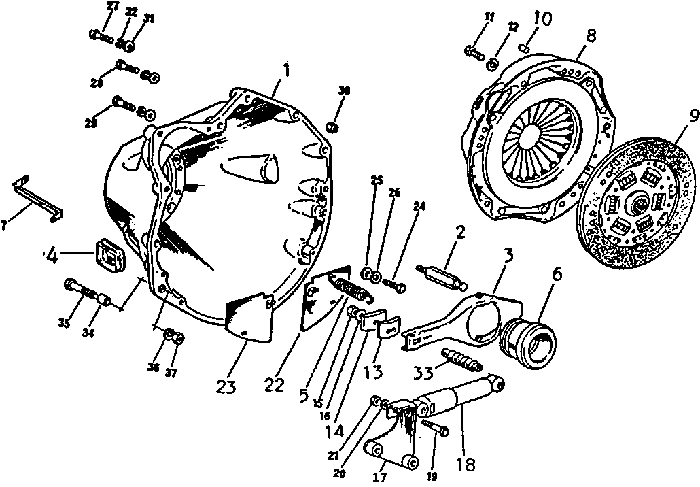

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
