Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Crankshaft assy | 1 | 94045 |
| 2.2 stroker crank | A/R | 94045S |
2 | Pilot bearing | 1 | 91823 |
| Pilot bushing | A/R | 91823A |
3 | Flywheel dowel | 2 | 93506 |
4 | Flywheel bolt | 6 | 93507 |
5 | Flywheel | 1 | 93508 |
6 | Ring gear | 1 | 93509 |
7 | Main bearing set-Specify size. | 1 | 93510 |
8 | Thrust washer. Specify std. .0025, .005, .0075, .01, or .015 O/S. | 2 | 93513 |
10 | Lipseal, late type | 1 | 94068 |
not ill | Seal, rope type | 2 | 93514 |
13 | Crank pulley key | 1 | 93515 |
14 | Exchange P&L assy. Rebored liners with new pistons and rings. Specify std. or high compression | 1 | Use Components |
15 | Piston rings set, Modv | 1 | 93998 |
15 | Piston rings set, Deves | 1 | 93998D |
16 | Standard compression piston. Specify std. or O/S. | 4 | 93516D |
| High compression piston. Please phone us to discuss pistons as we stock 2.0 L & 2.2 L strokers as well as several compression hights for competition, turbo, etc. | 4 | 93516F |
18 | Rod | 4 | 93520 |
19 | Bush-small end | 4 | 93521 |
21 | Rod bolt | 8 | 93523 |
22 | Rod bearing set. Specify size. Caution: a few blocks are bored for oversize O.D. main bearings. | 1 | 93524 |
|

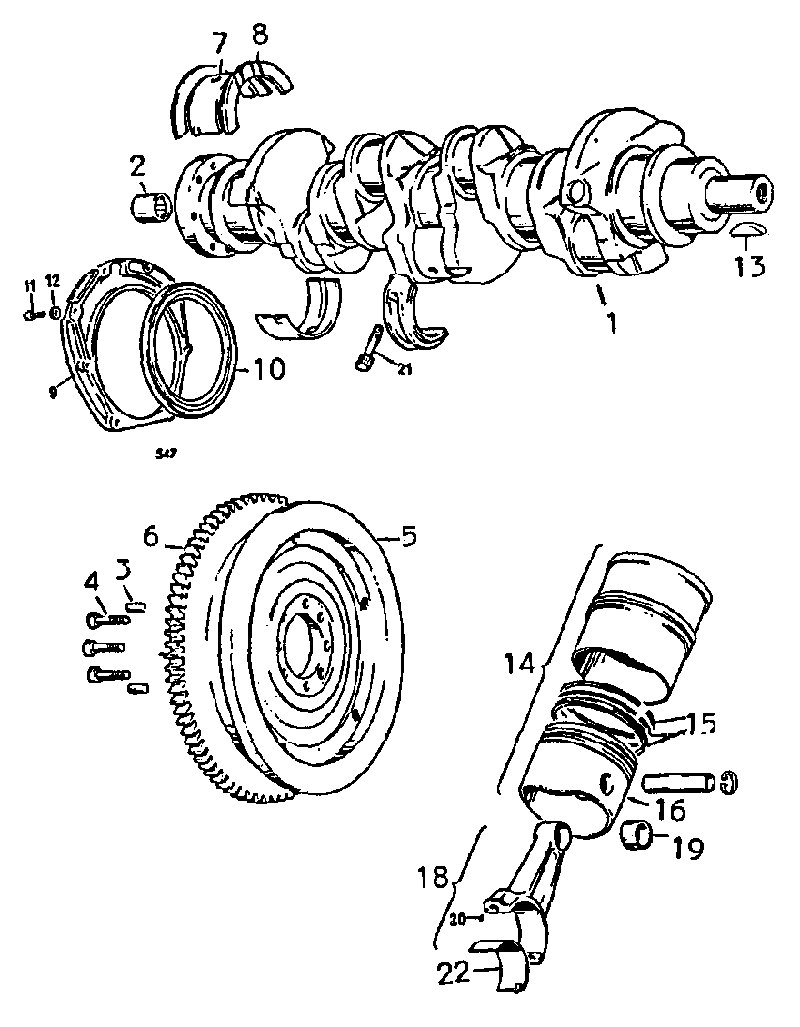

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
