Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | RH boot lid hinge, Conv | 1 | 50845 |
| RH boot lid hinge, Saloon | 1 | 71430 |
| LH boot lid hinge, Conv | 1 | 50844 |
| LH boot lid hinge, Saloon | 1 | 72847 |
2 | Boot lid packer hinge | A/R | 72847 |
3 | Upper deck surround | 1 | 71014 |
5 | RH deck surround | 1 | 71015 |
6 | LH deck surround | 1 | 71016 |
8 | Lower deck surround | 1 | 71017 |
10 | RH upper joint | 1 | 71018 |
| LH upper joint | 1 | 71019 |
11 | RH lower joint | 1 | 71020 |
| LH lower joint | 1 | 71021 |
15 | Backlight glass | 1 | 74340 |
16 | Sealing rubber | 1 | 70977 |
17 | Closing rubber | 1 | 70978 |
21 | Boot lid lock striker | 1 | 72199 |
28 | Boot lid buffer | 1 | 70561 |
29 | RH deck lift mechanism | 1 | 70133 |
| LH deck lift mechanism | 1 | 70134 |
32 | Lift mechanism spring | 4 | 70109 |
40 | Boot lock | 1 | 71204 |
43 | Boot light switch | 1 | 76500 |
52 | Boot release cable | 1 | 74518 |
53 | Boot release lever assembly | 1 | 73447 |
58 | Release lever camlock | 1 | 73722 |
61 | Clearance seal | 1 | 70973 |
62 | Boot lid seal, Conv | 1 | 70916 |
not ill | Boot lid, Conv | 1 | 50281 |
not ill | Boot lid seal | 1 | 50537 |
|

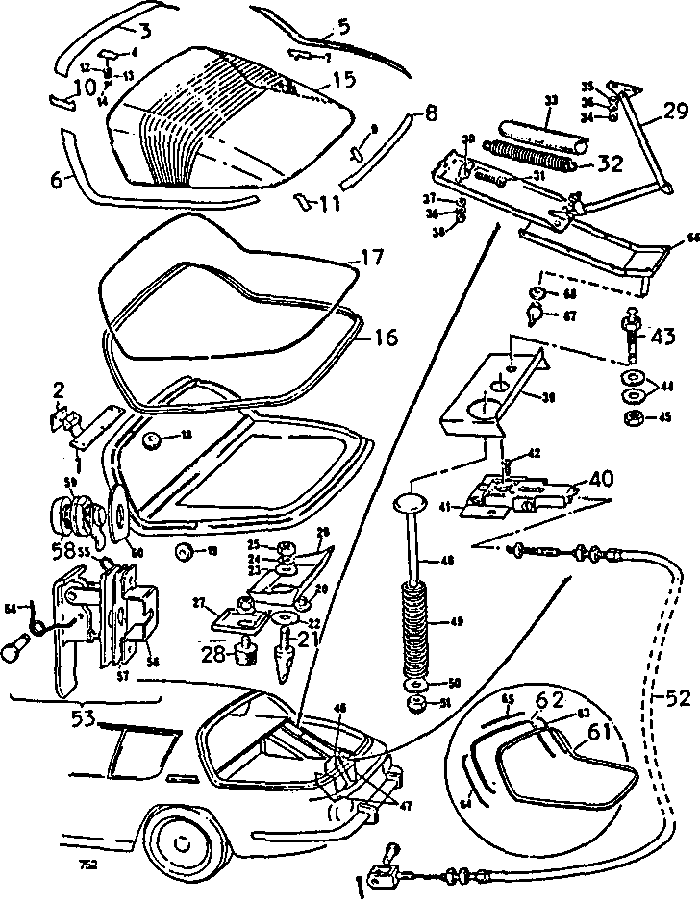

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
