| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Windscreen finisher | 1 | 71050 |
| 2 | Windscreen finisher | 1 | 71051 |
| 3 | Windscreen joint cover | 2 | 71052 |
| 7 | Windscreen (Sundym) | 1 | 71953 |
| 8 | Windscreen sealing rubber | 1 | 70910 |
| 9 | RH door seal | 1 | 71536 |
| | LH door seal | 1 | 71537 |
| 15 | RH 1/4 light with hole | 1 | 75166 |
| | LH 1/4 light with hole | 1 | 75167 |
| 16 | RH 1/4 light seal | 1 | 76731 |
| | LH 1/4 light seal | 1 | 76732 |
| 15 | RH 1/4 light, no hole | 1 | 76445 |
| | LH 1/4 light, no hole | 1 | 76446 |
| not ill | Washer bottle and pump assembly | 1 | 99240 |
| not ill | Aftermarket bottle and pump assembly | 1 | 99240A |
| not ill | Aftermarket pump | 1 | 93019A |
| 20 | Washer jet | 2 | 91702 |
| 21 | Jet cover | 2 | NLS |
|

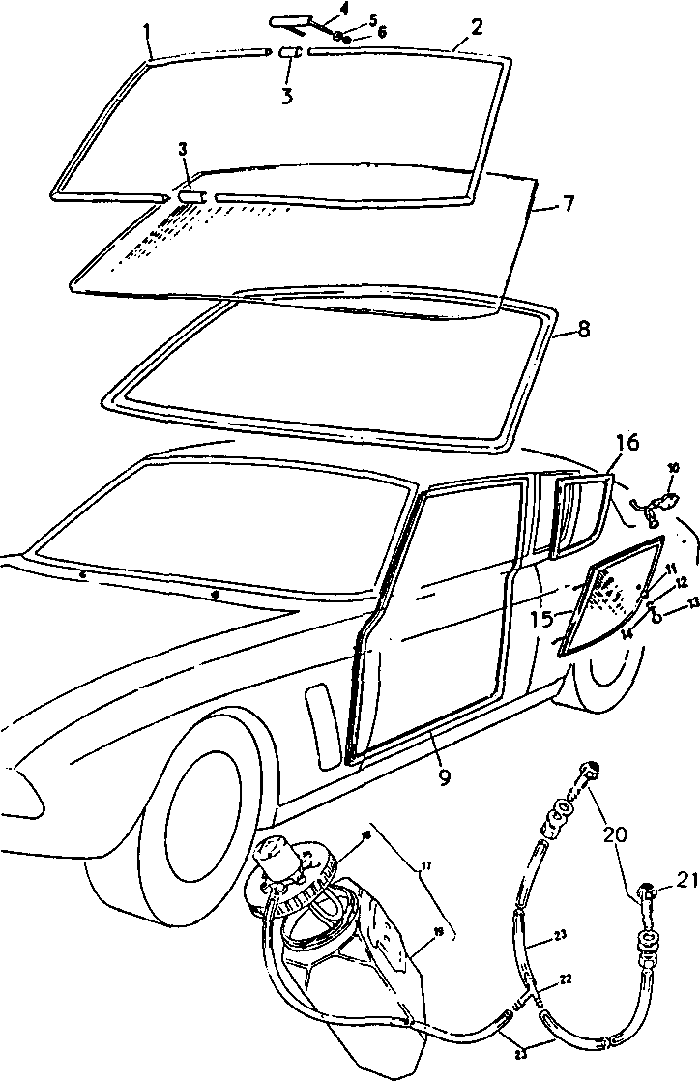

![[]](Images/WindscreenAndQuarterlightPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
