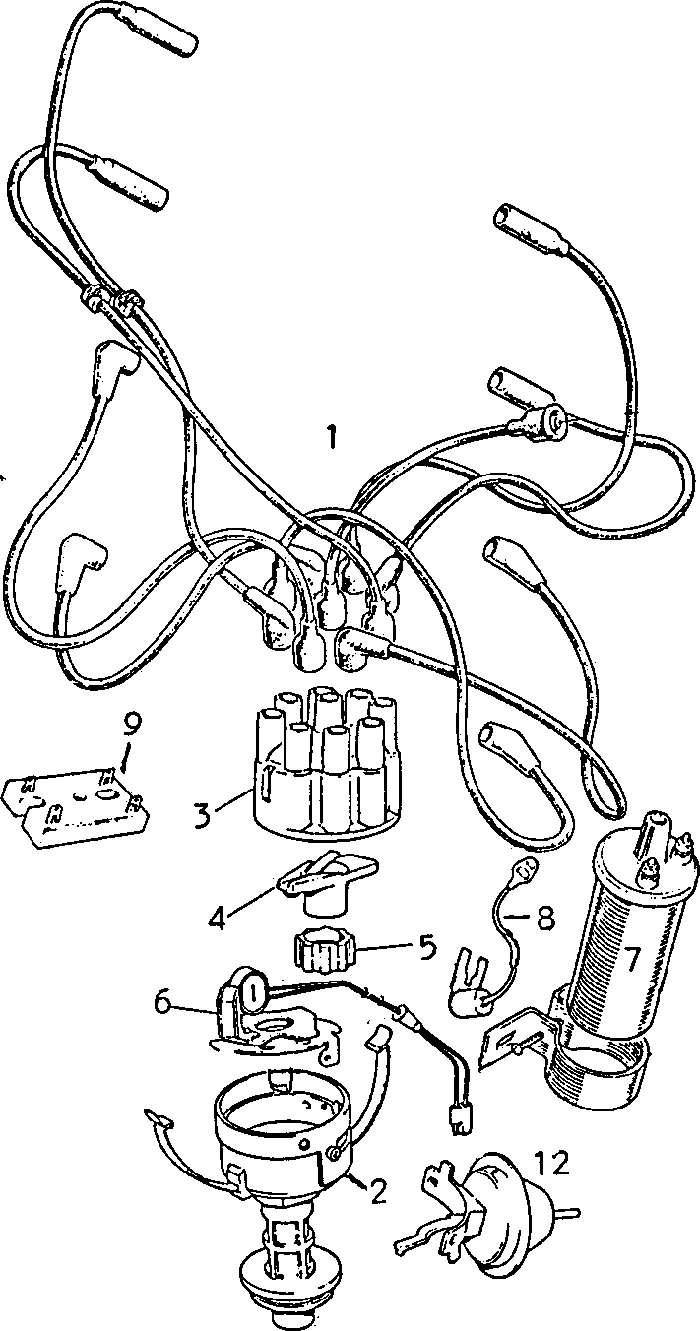

Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Plug wire set 8mm | 1 | 8070 |
1 | Plug wire set 8.5mm | 1 | 8570 |
7 | Street crane coil | 1 | 730-0020 |
| Performance coil | | 730-0040 |
8 | Ignition coil condenser | 1 | CT2496 |
Electronic Ignition |
2 | Distributor, rebuilt | 1 | 30-3896 |
3 | Distributor cap | 1 | C191 |
4 | Rotor | 1 | D147 |
5 | Reluctor | 1 | RE2 |
6 | Pickup & plate | 1 | ME2A |
9 | Ballast resistor | 1 | RUE1 |
12 | Adjustable vac unit | 1 | 99602-1 |
| Control box | 1 | CBE5 |
Single Point Distributor |
| Distributor, rebuilt | 1 | 30-3817 |
| Cap | 1 | C156 |
| Rotor | 1 | D147 |
| Vented points | 1 | A110V |
| Condenser | 1 | G128 |
| Adjustable vac. unit | 1 | 99603-1 |
| Crane electronic ignition: | | |
| Street | 1 | 700-0228 |
| Performance | 1 | 3000-0228 |
Dual Point Distributor |
| Cap | 1 | C161 |
| Rotor | 1 | D135 |
| Vented points | 2 | A96V |
| Condenser | 2 | G124 |
| Crane electronic ignition: | | |
| Street | 1 | 700-0231 |
| Performance | 1 | 3000-0231 |
|
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
