| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 10 | Brake hose | 1 | CT8102 |
| 15 | Brake disc, MKIII | 2 | CT4966 |
| | Brake disc, MKII | 2 | CT3250 |
| 36 | Handbrake cable | 1 | CT6167 |
| not ill | Handbrake switch | 1 | 91254 |
| | Rear caliper kit | 1 | CT5457 |
| | Small piston | 4 | CT5479 |
| | Large piston | 2 | CT5482 |
| | Rear pads, no wires | 1 | CT5336 |
| | Hardware kit | 1 | LDP6 |
| | Handbrake pads | 1 | CT5535 |
|
![[]](Images/BrakingSystem-RearPlate.gif)

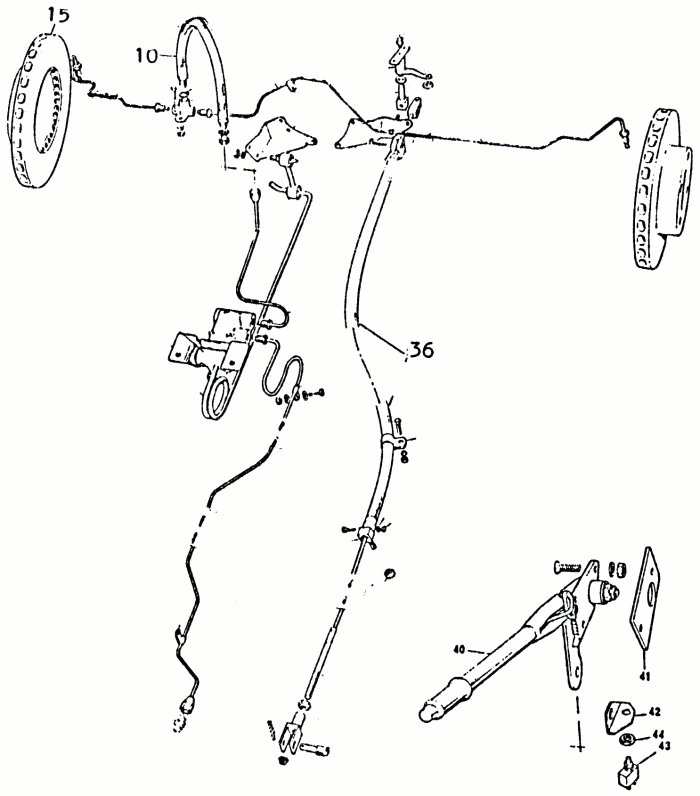

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
