Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
3 | Exhaust pipe gasket | 2 | CT6860 |
7 | 383 RH head pipe | 1 | CT1374 |
8 | 383 LH head pipe | 1 | CT1373 |
7 | 440 RH head pipe | 1 | CT6859 |
| Stainless | 1 | 52048 |
8 | 440 LH head pipe | 1 | CT6858 |
| Stainless | 1 | 52049 |
9 | Silencer clamp | 2 | CT942 |
10 | Stainless bracket | 2 | CT6383S |
17 | Silencer | 2 | CT7787 |
| Stainless | 2 | 52050 |
20 | Mounting washer | 4 | CT877 |
21 | Silencer mounting | 4 | CT256 |
26 | Silencer clamp | 2 | 208 |
27 | RH intermediate pipe | 1 | CT8034 |
| Stainless | 1 | 52051 |
28 | LH intermediate pipe | 1 | CT8033 |
| Stainless | 1 | 52052 |
29 | Tailpipe insulator | 2 | 91891 |
30 | Tailpipe mount | 2 | CT6387S |
31 | Tailpipe clamp | 2 | 207 |
32 | Resonator | 2 | CT8511 |
| Stainless | 2 | DMS52053 |
See also: Interceptor Headers
and
Tail Pipe & Resonator.
|

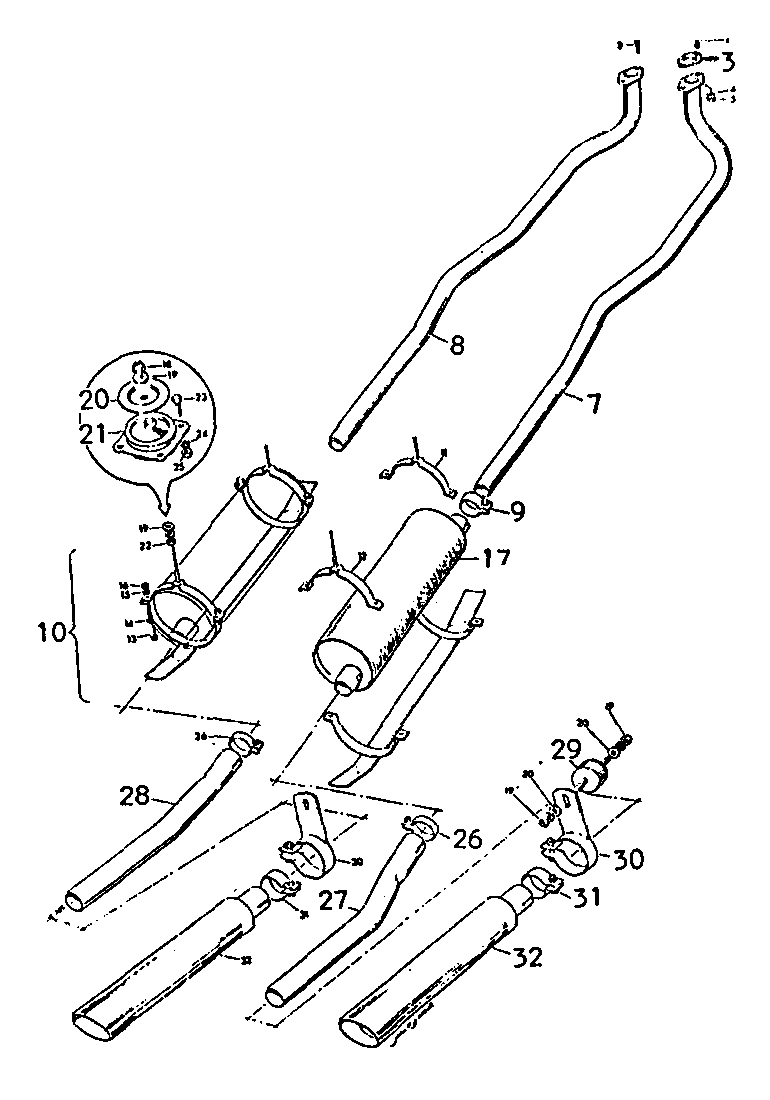

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
