| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Windscreen glass | 1 | 90111 |
| 4 | Convertible Top - Specify color. | 1 | 2440CG |
| 6 | Locking handle assembly | 2 | 97102 |
| not ill | Handle only | A/R | 97102H |
| not ill | Header rail seal | 1 | DMS91438 |
| 21 | Retainer clip | 2 | 91108 |
| 40 | LH sealing angle | 1 | 92157 |
| | RH sealing angle | 1 | 92158 |
| 41 | Sealing rubber | 2 | 92150 |
| 42 | LH striker plate | 1 | 91235 |
| | RH striker plate | 1 | 91236 |
| not ill | Top boot | 1 | DMS97103 |
|

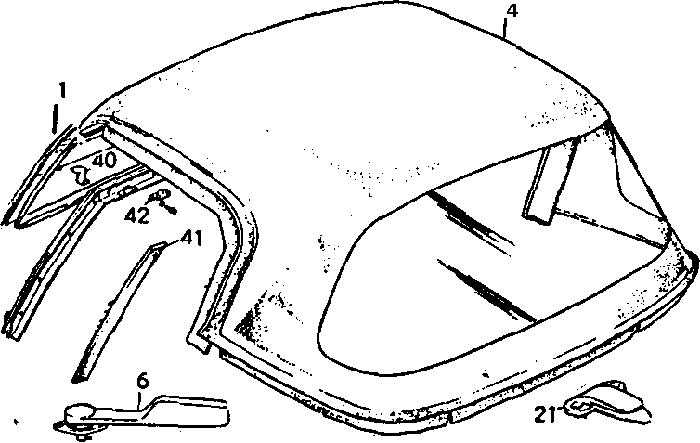

![[]](Images/SoftTopAndWindscreenPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
